Filter Foam


Description

Reticulated Foam

Applications

Common applications for filter foam include speaker covers, filters, and cleaning sponges.

Advantages

Filter foam is good-quality foam with a medium/firm feel. Filter foam has a high dust collection rate, while still providing high air flow. It operates as a depth-loading filter, as opposed to a surface-loading filter, essentially trapping dust particles with its cells. It is the ideal material for applications where porosity, surface area and low-density are integral for success.

Type

Porous, low-density polyurethane foam

Available Forms

Filter foams are available in bun, roll and sheet forms, pores ranging from 10 PPI (coarse) to 100 PPI (fine) and those colors most requested: Charcoal (black) and white.

Density ranging from 1.20 lb/ft to 1.5 lb/ft

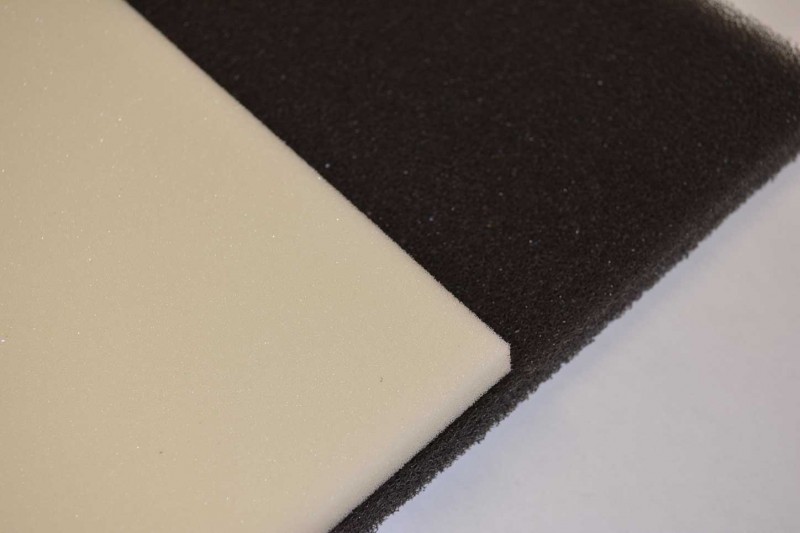

The different pore sizes are shown in the picture below, comparing 10 PPI (bottom piece) and 80 PPI (top piece) filter foam.

Properties

  • Compressibility
  • Cushioning
  • Energy absorption
  • Flexibility
  • Light-weight
  • Low Thermal Conductivity
  • Mildew-resistance
  • Resiliency
  • Sound absorption
  • Vibration Dampening
